Component：2 x Lo15100A-8Ω (15" LF) + HI75TFe-16Ω (3" HF)
Impedance：4Ω
Frequency Response(+-6dB)：40Hz-18KHz
Sensitivity(1M/1W)：99
SPL(dB/1m)：129
Rated Power (w)：1000
Max Power (w)： 2000
Dispersion Angle：H100.V60
Cabinet Size(mm)：768*518*1629
Net Weight (KG)：Woofer 63 Tweeter 17.5
Gross Weight (KG)：Woofer 69 Tweeter 22
Packaging Size(mm)：Woofer 850*600*1000 Tweeter 850*860*780
Component：2 x Lo15100A-8Ω (15" LF) + HI75TFe-16Ω (3" HF)
Impedance：4Ω
Frequency Response(+-6dB)：40Hz-18KHz
Sensitivity(1M/1W)：99
SPL(dB/1m)：129
Rated Power (w)：1000
Max Power (w)： 2000
Dispersion Angle：H100.V60
Cabinet Size(mm)：768*518*1629
Net Weight (KG)：Woofer 63 Tweeter 17.5
Gross Weight (KG)：Woofer 69 Tweeter 22
Packaging Size(mm)：Woofer 850*600*1000 Tweeter 850*860*780

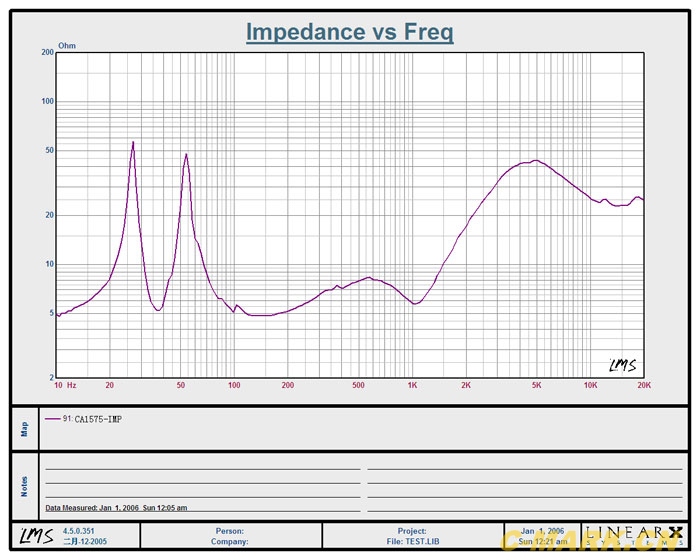

CA1575---IMP

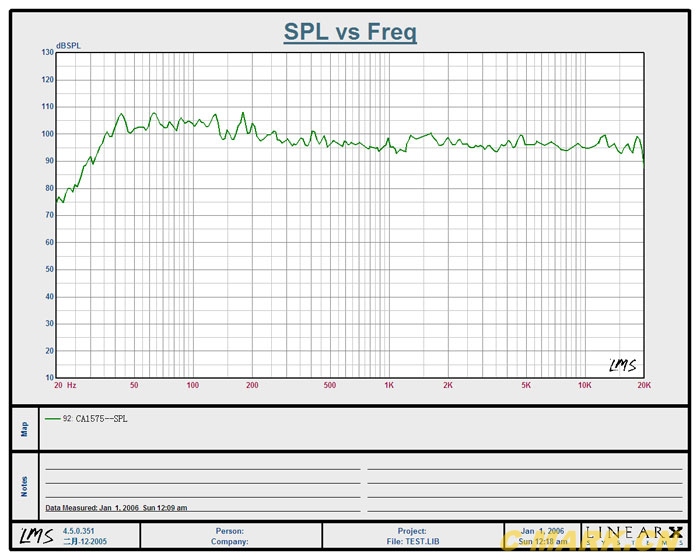

CA1575---SQL
